ForceBoard™ Accessories

Three point bend fixture (black component, length 150mm) for use together with i-Motor and RigidFrame

gripper

Our versatile gripper end probe with multiple fastening options, always delivered with i-Motor!

HRC-3 Rockwell diamond probe

for scratch testing, 0.2mm / 200µm tip radius

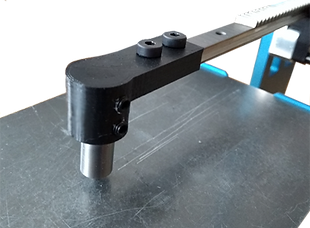

fixed probe for increasing load scratch

Fixed probe for linearly increasing normal force friction and scratch testing

Eccentric roller grip for thin film, paper and general purpose tensile testing


Optional tablet PC with pre-installed software and live support!

Protective case

Protective case


Torque neutral pivot loading arm with added control weight "helipad" allowing for removal of the probe and fixture weight. Used for friction, scratch and linear wear testing in the gram up to kilogram range.

plastic film tensile testing.png

Triangular blocks for thin film tensile testing

adjustable normal force fixture.png

Adjustable normal force test sample holder

ASTM D1894

200 gram steel weight for friction testing according to ASTM D1894

Forward backward spacer (black component) for reciprocating friction testing with the 200 gram steel weight

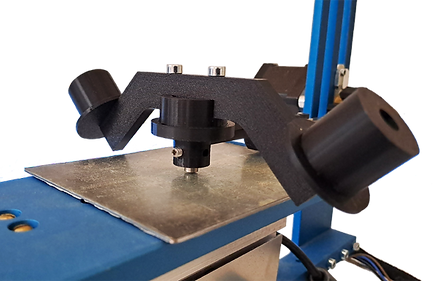

scratch tester

V-bar assembly for heavy load scratch & friction testing, capable of up to 10kg of applied vertical load!

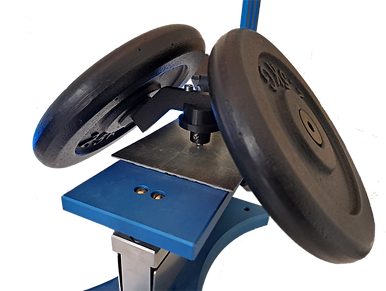

Weight discs for pivot loading arm

available in 0.5kg, 1kg and 2kg versions

Can't find what you are looking for? Contact Us and we'll take care of it
